Schematics¶
Interconnect Board¶
Connector and Pin Information: Interconnect Board [PDF]
Servo Board¶
Top
Bottom
Connector and Pin Information: Servo Board [PDF]
Common Connector Pinouts¶

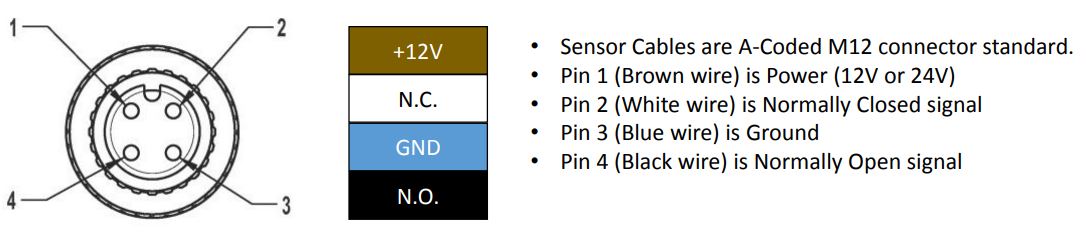

M12 Sensor Inputs¶
This picture is looking at a Female connector body - pin assignments will be mirrored for Male.

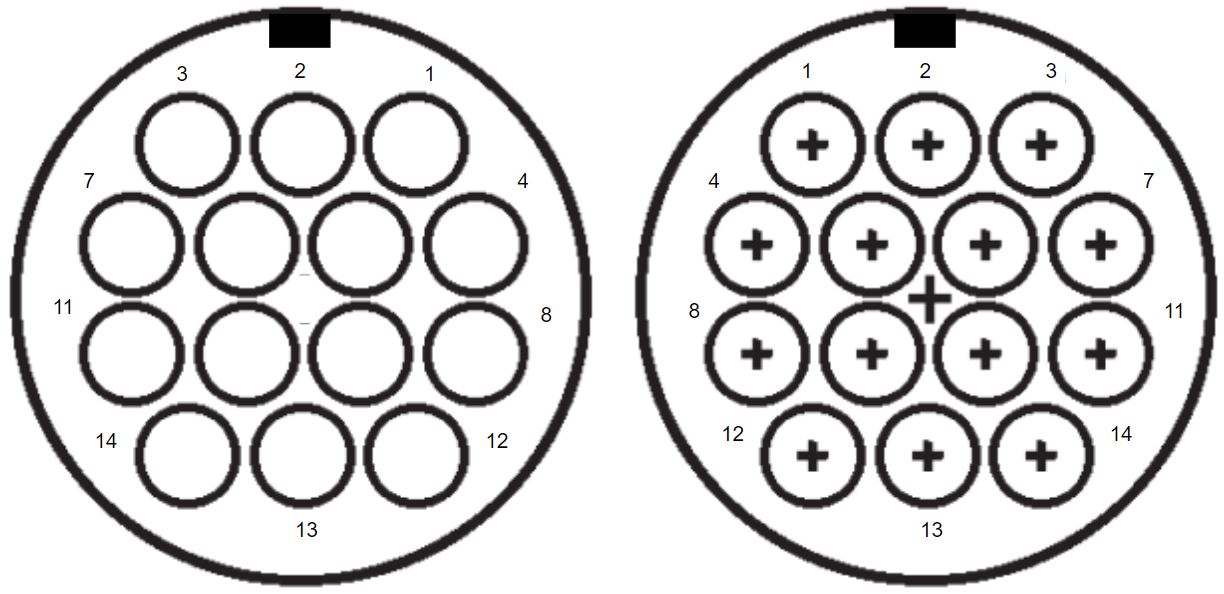

14-pin Control Cable¶
FEMALE connector
MALE connector
Application
- Cables labeled "PLASMA ONLY" are not connected on pins 1 and 2.
- Cables labeled "SPINDLE ONLY" have all pins connected and should not be used for plasma with the EX controller. Doing so will result in poor Torch Height Control performance.
| Connector Pin # | Use | In / Out | Description | Color | CNC12 I/O Assignment |
|---|---|---|---|---|---|
| 1 | Spindle | Digital In | Spindle OK Ground | Blue | IN6 |
| 2 | Spindle | Digital In | Spindle OK | White | IN6 |
| 3 | Plasma | Digital Out | Torch ON | Orange/Black | OUT6 |
| 4 | Plasma | Digital Out | Torch ON | Green/Black | OUT6 |
| 5 | Plasma | Analog In | Voltage Divider (-) | Red/Black | ANLV |
| 6 | Plasma | Analog In | Voltage Divider (+) | Red/White | GND |
| 7 | Spindle | Digital Out | FWD | Orange | OUT5 |
| 8 | Spindle | Digital Out | DCM | Green | OUT5 |
| 9 | Spindle | Analog Out | Analog Control Voltage | Red | AN OUT |
| 10 | Spindle | Analog Out | Analog Common | Black | AN GND |
Pins 11-14 Not In Use
Wiring Diagrams¶

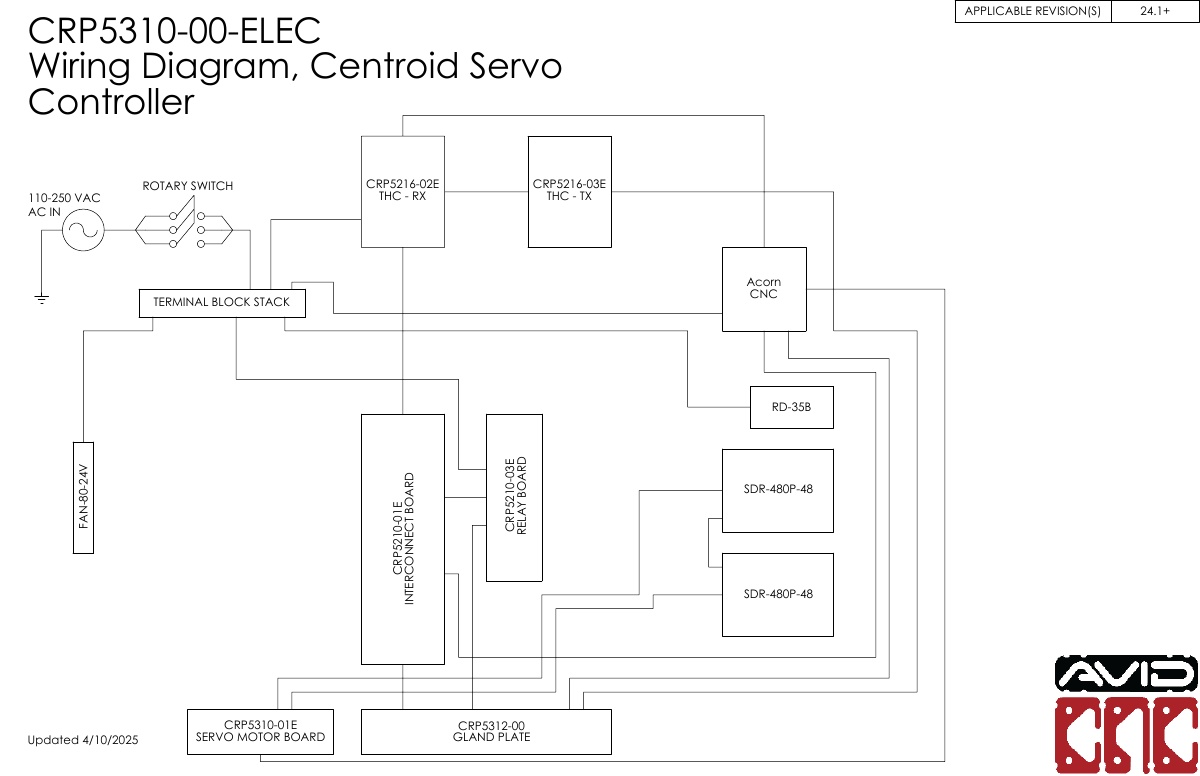

EX Servo Controller¶

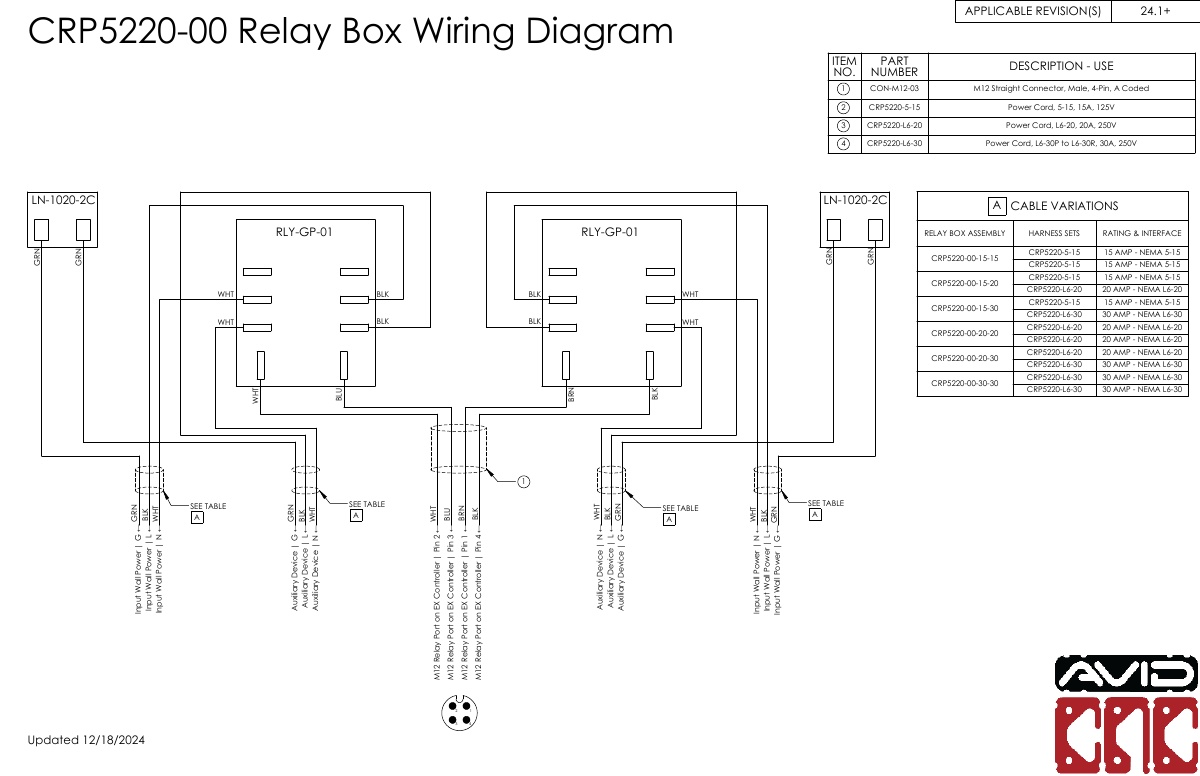

Auxiliary Power Relay¶

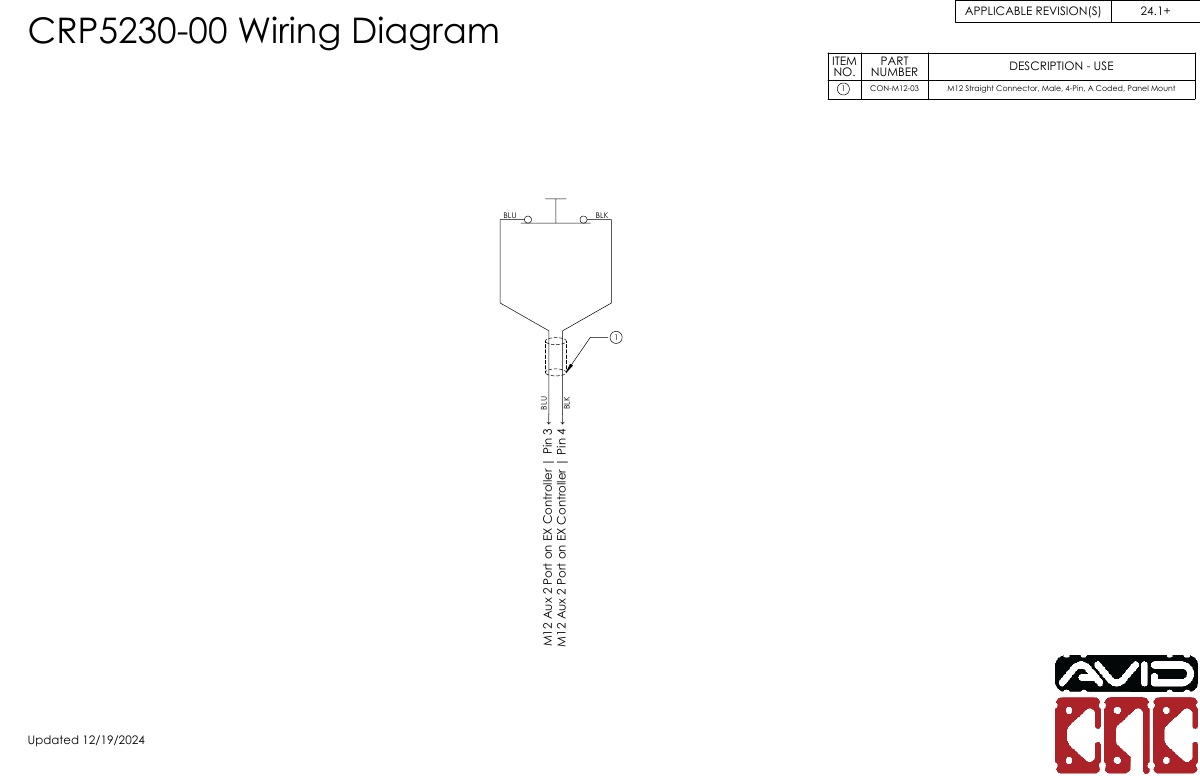

Tool Height Setter¶
